SPS620 & SPS720 ROBOTIC TOTAL SOLUTIONS

Keep it accurate, but keep it simple. The SPS620 and SPS720 are perfect for one-person operation on smaller site operations and work on structures such as bridges or culverts, offering very high accuracy and reliability for construction site positioning, stakeout and measurement.

Features & Benefits

No matter what job you are doing, Trimble robotic total stations will deliver unmatched user experience, all-around capability and incredible results, priced for a quick return on investment.

MultiTrack Technology

  • Locks on and tracks passive prisms for control measurements, and active prism targets for dynamic measurements required for grade control applications
  • Prevents costly delays and subsequent rework; faster machine speed means increased productivity and faster results to grade

Automatic Functions

Take accurate measurements in less time, and get real-time alerts to make adjustments. More accurate data captured using a faster instrument speed means increased productivity and faster results to grade.

  • Automatically corrects for mislevelments +/- 6’, immediately warns the operator of any mislevelments beyond 6’ and average angles during distance measurements to increase consistency, prevent costly delays and subsequent rework
  • When measuring in standard mode, the Trimble SPSx20 Total Station takes approximately 2 seconds to measure the distance
  • Angles returned to the Trimble SPSx20 Total Station at 1000Hz are averaged over the 2 second period to obtain an average angle measurement; the resultant angle measurement is an average of over 2000 observations

MagDrive

  • Offers fast pointing, aiming and tracking, plus slow motion controls for manual aiming
  • Trimble MagDrive™ servo technology is an electromagnetic direct drive servo system which gives high turning speeds and accuracy, the frictionless motion removes servo noise and reduces instrument wear
  • Endless horizontal and vertical motion, including fine adjustment

Applications

Trimble SPS720 and SPS620 Total Stations offer very high accuracy and reliability for construction site positioning, stakeout and measurement.

Ideal for a range of applications:

  • Smaller construction sites or combined with GNSS on larger sites
  • Tasks where the accuracy requirements are tight
  • Measuring dangerous or inaccessible locations
  • Automated target measurement provides a method of checking and warning about movement of ground or buildings that could be affected by construction activities

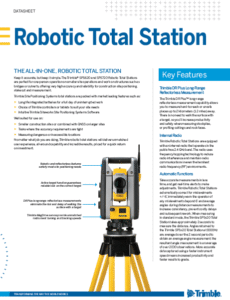

Robotic Total Stations Datasheet
